Trim, J-channel, and starter-detail choices to prevent water intrusion around replacement windows: North Attleboro, MA best practices

When homeowners in North Attleboro plan window replacements, a frequent, practical question is: what trim and flashing details should be included so new windows and adjoining siding don’t leak? This article explains how trim, J-channel, starter strips, and backer flashing work together at window openings to shed water during and after a replacement window project. It describes correct and problematic details, explains sequencing with vinyl siding, and lists the focused questions you should ask a contractor evaluating or quoting the job.

We avoid general marketing claims and focus on observable conditions, common failure modes, and the installation choices that matter in Southeastern Massachusetts. Use this as a decision guide when you compare proposals, inspect work in progress, or prepare for a contracting conversation in North Attleboro.

How trim and flashing control water at a window opening

Windows are controlled openings in the building envelope: the glass and sash keep the air and rain out when properly sealed, but the surrounding junction where the window frame meets sheathing, trim, and siding is a critical vulnerability. Water that gets past exterior cladding must be collected and directed away from the wall assembly; trim and flashing provide that collection and drainage path.

There are three simple principles that guide good detailing:

• Shingle the layers. Every flashing or trim layer should overlap lower layers so water runs over the joint, not into it.
• Create a slope and gap for drainage. Where possible, sill flashings should have a slight slope and leave a discreet drainage path to the exterior.
• Terminate materials on compatible substrates. Fasteners, sealants, and trim should be attached to sound sheathing or blocking—not just nail fin or siding alone—so connections remain secure and serviceable.

When these principles are honored, incidental water that reaches the head, jambs, or sill is routed over and away from the wall sheathing rather than into it. The rest of this article explains the components that make that happen and the common ways they are misused or omitted.

Core components and their functions

Understanding the role of each piece helps you read a proposal and spot risky details on-site. Below are the elements that commonly interface at a replacement window and what each must do.

Window flange, nailing fin, or replacement frame

Many replacement windows are installed using a flange or nailing fin that ties the window to the rough opening. Some retrofit installations use block-frame systems or pocket replacements that don’t expose the same sheathing detail. Regardless of type, the flange should be integrated with the flashing system so water is directed over the exterior trim rather than behind it.

Backer or head flashing (self-adhered membrane)

Backer flashing is a primary water-control layer installed behind or over the window flange at the head and sometimes at sills and jambs. Typical materials include peel-and-stick self-adhered membrane or professionally fabricated metal flashing. The head flashing must be lapped into the drainage plane above the opening (housewrap, felt, or sheathing membrane) so water that runs down the wall is diverted outside the wall cavity.

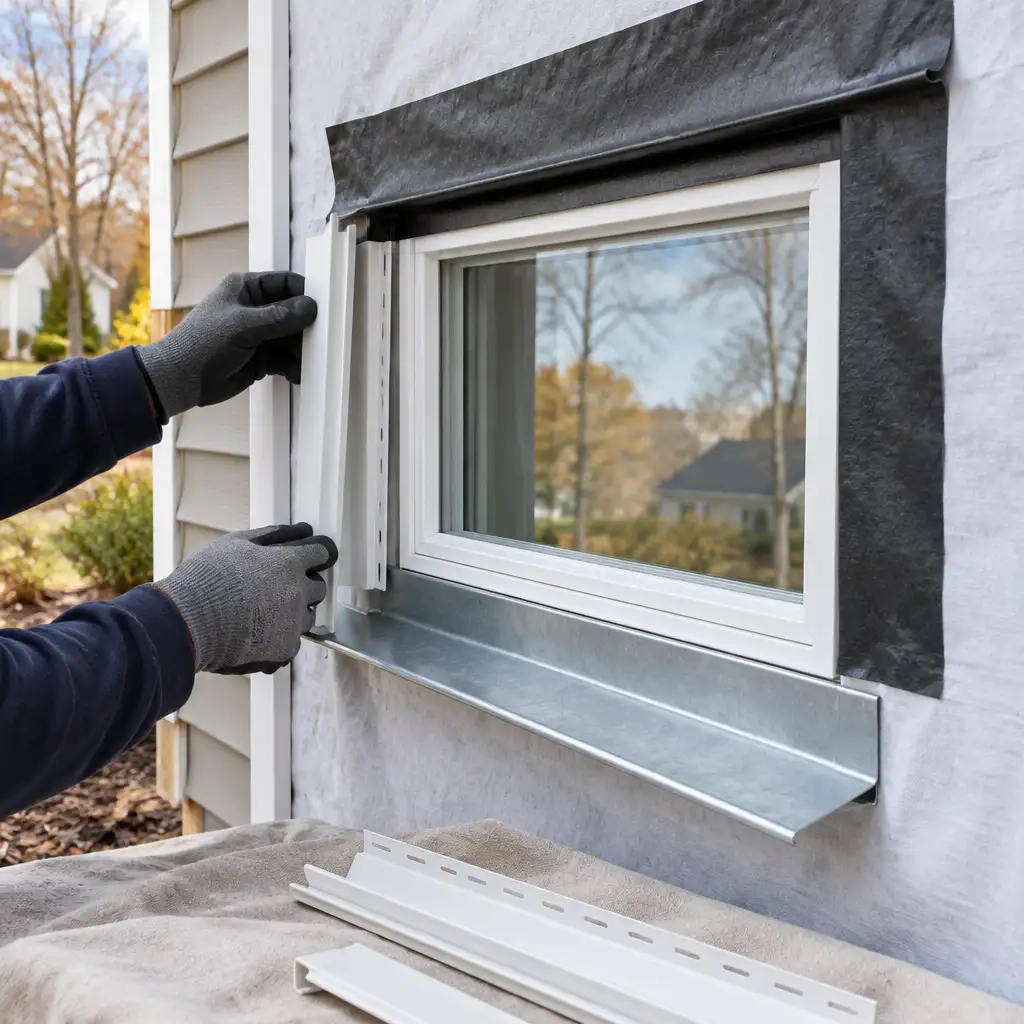

J-channel

J-channel is a vinyl or metal receiver installed around window perimeters to accept siding returns. When used correctly it provides a neat finish and a small cap over the siding edge. However, J-channel alone is not a watertight flashing. It must be positioned and sealed so it does not trap water against the window head or jambs.

Starter strip and sill flashing

A starter strip is normally referenced for the first course of vinyl siding at the bottom of a wall; however, specialized starter or sill channels are used at window sills to secure the bottom edge of siding or trim and to create a drainage gap. A positive-slope sill flashing—often formed from metal or membrane—creates a durable path to the exterior if the sill plane is exposed to water migration.

Trim boards and window casing

Trim (PVC, composite, primed wood, or aluminum) covers the edge of the rough opening and provides a surface for installing J-channel and siding returns. Trim should be backed by sound blocking and be installed so its joints are shingled, and so fasteners penetrate solid backing rather than hollow siding returns.

Sealants and fasteners

Sealants fill small gaps but are not a substitute for proper flashing. Use sealants where they serve as a secondary line of defence: at controlled terminations, factory mitered corners, and where different materials meet. Fasteners must be corrosion-resistant and placed into solid substrate. Overdriven fasteners, exposed staples, and nails placed into vinyl returns commonly lead to future leaks.

Correct detail examples: what to expect

Below are practice examples of good, buildable details. If you see the following in a contract or at an inspection, you can reasonably expect a contractor to have considered water control.

Head flashing overlapped into the weather resistive barrier

At the window head a self-adhered membrane or metal head flashing should be installed so it tucks behind the weather resistive barrier (housewrap) above the opening and lays over the window flange. This creates a shingled sequence: WRB → head flashing → window flange. The exterior siding or J-channel rides below this assembly. The key is that water running down from above meets the flashing first and is directed over the window head and out to the face of the wall.

Visually, you should see a continuous membrane or sheet-metal head flashing with a neat lap to the WRB and no gaps where the membrane terminates without coverage. If the WRB is torn or not returned properly, that is a repair item.

Sill flashing with drainage gap and positive slope

A good sill detail uses a corrosion-resistant metal pan or a formed membrane that extends past the interior plane of the jamb and includes a small outward drip edge. The pan should be sloped slightly to the exterior and allow the final bottom trim or siding to sit above it, not sealed flush. This gap provides a path for water to drain rather than accumulate behind trim or siding returns.

In retrofit scenarios where the original sill is uneven or rotted, contractors should remove compromised sheathing and install new sill blocking and a properly formed sill pan before finishing with trim and siding.

J-channel installed over but not covering head flashing termination

Acceptable use of J-channel places it so that the top of the J-channel is beneath the siding but not overdriven into the head flashing termination. The top termination of J-channel should not intercept the shingled lap of the head flashing and WRB—doing so creates a capillary joint that channels water into the wall. Instead the J-channel should be fastened into backing and trimmed so the flashing lap remains continuous.

Trim backed by blocking and through-fastened

Trim pieces should be fastened into blockings—either solid sheathing or installed wood blocking—so screws penetrate solid material. Countersinking or face-nailing into thin siding returns will loosen over time. Backing also allows sealant beads at butt joints to compress without pulling out fasteners.

Common problematic details and the symptoms they produce

Understanding what you’re seeing helps you ask the right follow-up questions. Here are frequent mistakes and the on-site signs that typically follow.

Problem: J-channel used as a primary flashing

Symptom: water stains or soft sheathing at the head or jambs; blistering paint or mould near window corners.

Why it fails: J-channel is a receiver for siding, not a water-diverting flashing. If the window flange or head flashing is absent or poorly lapped, water collects behind J-channel and migrates to the sheathing. You may see a neat-looking finish that hides moisture intrusion behind it.

Problem: No sill pan or poorly formed sill detail

Symptom: interior drafts at the bottom of the window, stains on interior trim, or visible rot when siding is removed.

Why it fails: Windows leak most often at sills when water runs down the glass, condenses, or enters around flashing gaps. Without a dedicated sill pan that drains outside the wall, incidental water ends up in the framing or interior stops, causing rot and mould over time.

Problem: Flashing lapped in the wrong direction

Symptom: repeated leaks after sided repairs, persistent staining below the head, or apparent failure immediately after siding is installed.

Why it fails: When flashings or WRB layers are installed with the laps reversed—i.e., lower layers overlapped by upper ones in a way that traps water—there is no continuous drainage path. Even correctly installed materials will fail if the sequencing is backward. Good installers follow the shingle rule: upper layers overlap lower ones.

Problem: Sealant used as the primary defense

Symptom: cracked or failed caulk lines around windows, with moisture entering once the caulk ages.

Why it fails: Sealants deteriorate with UV exposure and movement. They perform well as a secondary barrier but should not replace mechanical flashing and proper overlaps. If the installation relies on continuous caulking rather than flashed laps, expect maintenance and eventual failure.

Sequencing: coordinating window replacement with vinyl siding

Sequencing matters because improper order is a common source of performance problems. Two common project workflows are:

• Replace windows first, then re-install or replace siding and trim.
• Replace siding first, then install windows into the finished siding reveals.

Both approaches can be correct when thoughtfully executed. The key is that each interface—window head, jambs, and sill—must receive appropriate flashing that integrates with the siding plane.

Window-first (recommended when feasible)

If the windows are replaced first, the installer exposes the rough opening and can install continuous backer flashing and a properly formed sill pan directly to the sheathing. After the flashing is integrated with the WRB, siding crews can finish the cladding and fit J-channel or casing returns that sit over the finished flashing termination. This approach reduces the likelihood that siding installers will cut corners by hiding poor flashing behind the siding.

Siding-first (acceptable with careful planning)

When siding is done before windows (for example, when matching new siding to existing windows), installers must leave access or trim that allows proper integration later. That usually requires removing siding around the opening temporarily or using removable trim and ensuring a full-perimeter flashing strategy is still possible when the window is installed. Without these accommodations, the window installer may be forced to install surface-mounted trim that cannot fully connect to the underlying WRB.

When both trades are separate contractors

Coordination becomes the responsibility of the homeowner or project lead. When a siding contractor and a window contractor are different parties, require a written phasing plan: who removes what, where backer flashing will be tied in, and who is responsible for final termination of the J-channel and trim. Clear plans prevent the “that’s not my scope” handoff that commonly leads to missed flashing laps.

For local homeowners, this is often the reason to choose a contractor or team willing to coordinate both trades. Boss Services can assist clients in North Attleboro with coordination or single-source work, and you can compare proposals on the same technical criteria explained here. See our siding service overview for more on coordinating cladding and openings: Siding repair, replacement and installation.

Assessing existing openings before replacement

A thoughtful assessment avoids surprises. A contractor should not only price the visible new window and trim but should also evaluate what lies behind the cladding and the condition of the WRB and sheathing.

What a competent pre-replacement inspection checks

• Condition of the sheathing at the sill and head: soft spots, staining, or delamination are flags for replacement or selective sheathing repair.
• Presence and condition of a sill pan or existing head flashing: confirm whether a backer membrane or metal flashing is present and if laps are intact.
• State of the WRB and whether it can be reused: sometimes housewrap is in good shape and can be carefully integrated; other times it must be replaced.
• Trim blocking: whether sufficient backing exists for through-fastening trim and J-channel.
• Interior signs of past leaks: staining, mould, or soft interior trim that indicate chronic intrusion.

If a contractor proposes a “siding-only” repair without inspecting the sheathing or WRB, ask for that inspection before you sign the contract. Hidden deterioration is the most common reason replacement windows later leak; addressing it at the outset is more cost-effective and durable.

Repair vs. replace: scope decisions to consider

Not every window project needs full sheathing replacement or complete siding removal. Below are practical tradeoffs and their long-term implications.

Limited repair (trim and local flashing work)

When sheathing is sound and existing flashing is intact, targeted work—adding a backer membrane at the head, installing a sill pan, replacing trim boards and J-channel—can yield durable results. This approach is less invasive and typically less expensive, but it relies on accurate assessment of hidden conditions.

Partial replacement (sill or sheathing sections)

If local rot or water damage is present at the sill or lower jambs, replace only the affected sheathing and framing and install a properly formed pan and flashing. This avoids wholesale siding removal and often results in a stable repair when the damage is limited.

Full opening rehab (recommended when uncertain)

When inspections are inconclusive, or when siding is being replaced as a larger project, removing siding and fully rebuilding the window opening—including sheathing, WRB, backer flashing, sill pan and new trim—provides the most reliable long-term performance. This is the preferred approach when moisture damage is visible or when the siding will be removed anyway.

Discuss these options with contractors and weigh the visible evidence; a reputable installer will document what they saw and why they recommend a certain scope.

Practical questions to ask your contractor (bring this list to meetings)

Use these targeted, technical questions to move the conversation away from price alone and toward durable performance:

1. Will you remove siding around each opening so you can install a sill pan and backer head flashing to the sheathing? If not, why?
2. What material will you use for the head and sill flashing (self-adhered membrane or metal)? Where exactly will it lap into the weather-resistive barrier?
3. How will you form the sill pan—factory-formed, metal, or membrane—and where will the drainage path exit to the exterior?
4. How will J-channel be terminated at the head so it doesn’t trap water behind the siding course?
5. What backing or blocking will you add behind the trim so fasteners are driven into solid material rather than the siding return?
6. Who is responsible for coordinating flashing laps if siding and window contractors are different trades or companies?
7. Do you plan to use continuous sealant as the primary water defense? If so, can you describe the redundant flashing strategy?
8. Will you document conditions and provide photos of the prepared opening before closing the siding? (This is useful for warranties and future claims.)

Concrete answers to these questions indicate that a contractor understands the details that control water. Vague responses or an insistence that “the standard approach” is sufficient are warning signs that the job may not be detailed to last.

Post-installation checks and simple maintenance homeowners can do

After installation and siding completion, verify these items before final payment reaches the contractor:

• Look at head flashings to confirm continuous, shingled laps with the WRB and no obvious gaps where J-channel interrupts the flashing termination.
• Check sill details: is there a neat drip or pan visible beneath the bottom trim? Does the bottom of the siding sit above the drainage lap rather than flush against it?
• Inspect fasteners in trim: screws or nails should penetrate blocking or sheathing; there should be no fasteners through thin siding returns alone.
• Ask for photos of the opening before and after siding re-installation if the contractor removed siding—these records are helpful if leaks occur later.

Maintenance: keep weep paths and bottom edges clear of paint buildup, sealant over-application, or debris. If caulk is used at finish joints, inspect every few years and replace cracked or failing sealant. Caulk is a maintenance item, not a permanent flashing substitute.

Next steps for North Attleboro homeowners

If you are planning window replacement in North Attleboro and your concern is preventing siding-related leaks, take these practical steps:

1. Arrange a pre-replacement inspection that includes removing a course of siding around at least one representative window to reveal the sill and head details.
2. Request a written scope that clearly calls out backer flashing, sill pan design, J-channel termination, and blocking for trim fasteners. Use the contractor questions above as a checklist during proposals.
3. If you are replacing siding shortly before or after windows, require a phasing plan that documents who installs what and when, to avoid the “it was already finished” gap where flashing laps get overlooked.
4. Ask for photos of the prepared opening and of flashing laps before siding is closed to the exterior; retain those images with your final project records.

For homeowners who prefer a single point of responsibility for siding and window coordination, reviewing proposals that include both trades often reduces the chance of interface errors. Learn more about coordinating cladding and openings on our siding service page: Siding repair, replacement and installation, and for window-specific installation questions see our windows and doors service page: Window and door installation and replacement. If you want local context about projects in the area, our North Attleboro town page explains where we work: North Attleboro — Boss Services.

FAQ

Q: Is J-channel alone sufficient to prevent window leaks under vinyl siding?

A: No. J-channel provides a neat siding termination but is not a primary flashing. Effective water control requires a shingled head flashing and a sloped sill pan. J-channel should be installed so it does not break the continuity of the flashing lap.

Q: If my siding contractor insists they don’t touch windows, how can I make sure the window installer ties into the siding properly?

A: Ask for a written phasing and interface plan in the contract. Require the window installer to document flashing laps to the WRB and to install sill pans before siding is closed. If two contractors are involved, identify who will remove and reinstall the siding around openings and who is responsible for flashing terminations.

Q: Are peel-and-stick membranes acceptable for head flashing, or should metal only be used?

A: Both self-adhered membrane and metal head flashing can perform well when installed correctly. The deciding factors are compatibility with the WRB, proper overlapping (shingled laps), and secure termination. The material choice often depends on accessibility, expected movement, and installer familiarity.
